Device Evidence and Partition Layout

Published: 31 Aug 2026

This note is the single source of truth for measured Creator 5 Pro recovery evidence recorded on 2026-08-26 and 2026-08-27. It describes one physically tested unit and separates physical confirmation, static inspection, repository evidence, and inference. Do not apply its geometry or hashes to another printer without a fresh read-only inventory.

Device under test

Item Observed value Evidence
Printer Flashforge Creator 5 Pro P1
Stock firmware before incident 1.9.8 P1/S1
Linux Buildroot 2020.02.1, Linux 5.10.186+, MIPS S1
SoC family X2600 from BootROM; X2600H Stage-2 label P1
eMMC marking PSE6A0SL-08GE P1
BootROM USB VID A108, PID EAEF P1
Mainboard marking in FCC image FFP0331_MainBoard_V1.0, date 2026-3-11 C1/S1 image evidence

The Stage-2 label does not prove the exact silicon suffix or compatibility with another board revision.

Physical interfaces

  • Bridging K4/BOOT at power-on selected an Ingenic USB BootROM mode.
  • The unpopulated J29 pads exposed the tested USB data pair and ground.
  • The Debug header showed no observed UART transitions on the tested pads with a 3.3 V adapter and oscilloscope. This does not prove every possible UART route is inactive.

Images:

  • C5P mainboard from FCC internal photos

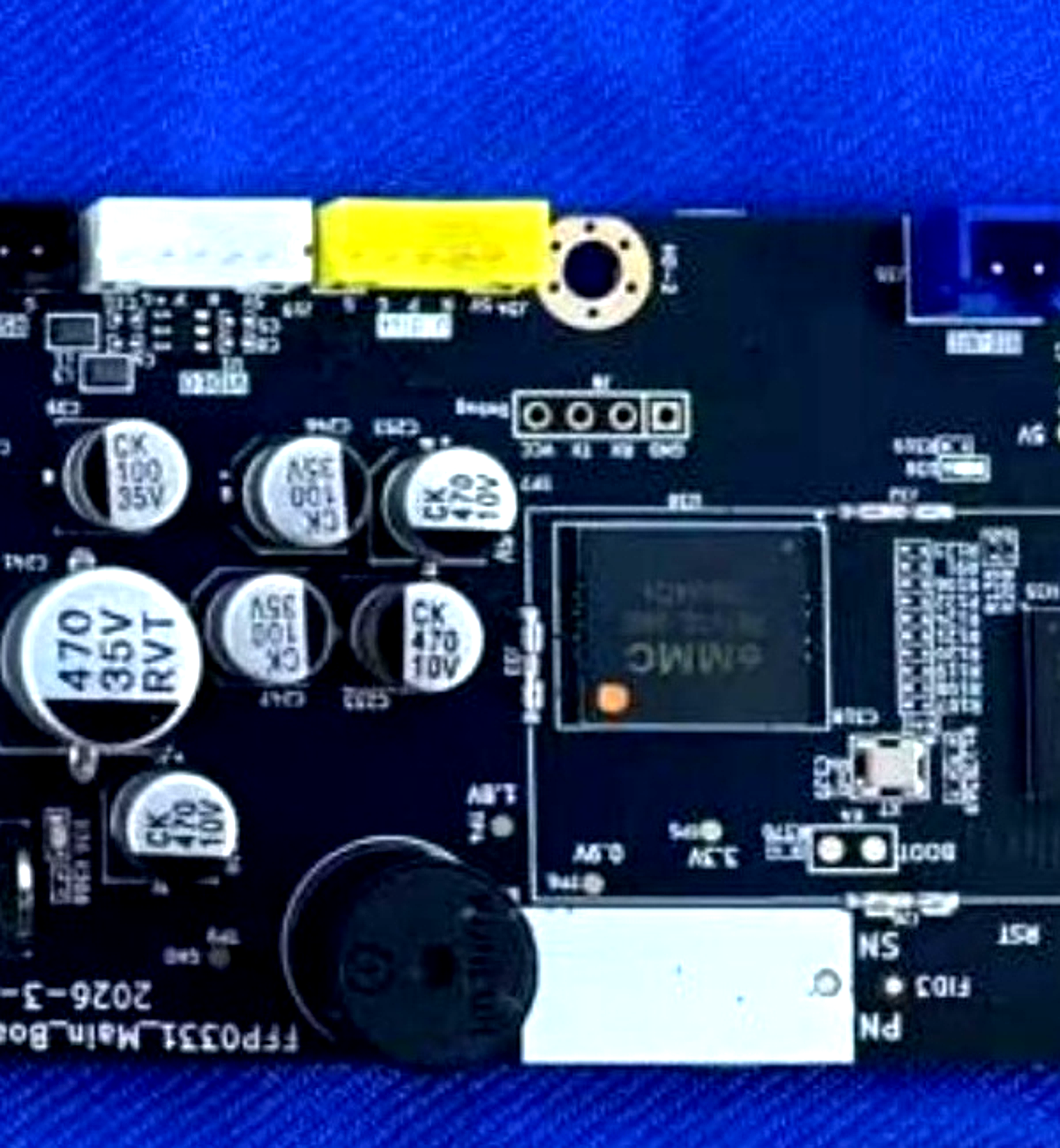

  • Candidate C5P debug header

FCC source: https://fccid.io/2AKLL-C5P/Internal-Photos/Internal-Photos-9540928

MMC0 user-area readback

The complete read-only MMC0 user area measured 7,837,581,312 bytes, or 15,307,776 sectors of 512 bytes. The SHA-256 is:

373EA4DA6CB579978FF49F592E4F025BFA6CFEA523AAC092D5D3F2ED4A79A087

The last readable sector start was 0x1D327FE00 and the first invalid sector start was 0x1D3280000. The GPT-visible layout was smaller than the measured physical user area; the extra tail was readable and zero-filled in this observation.

Separate regions:

  • boot0 and boot1 were later acquired through recovered Linux on 2026-08-27; each was 4 MiB, byte-identical, zero-filled, with SHA-256 BB9F8DF61474D25E71FA00722318CD387396CA1736605E1248821CC0DE3D3AF8.
  • RPMB was not acquired as a raw image.
  • Therefore the readback is an MMC0 user-area image, not an entire eMMC image.

GPT-visible partition layout

Index Name Start offset Size Runtime mount
1 kernel 0x00100000 8 MiB none
2 rootfs 0x00900000 100 MiB /, SquashFS
3 kernel2 0x06D00000 8 MiB alternate slot
4 rootfs2 0x07500000 100 MiB alternate slot
5 ota 0x0D900000 1 MiB update state
6 usershare 0x0DA00000 1,024 MiB /usr/prog and bind-mounted /etc
7 userdata 0x4DA00000 5,828 MiB /usr/data

The primary GPT described 7,356 MiB and pointed to a backup GPT that was not present at the reported final sector. Treat that inconsistency as a warning.

Confirmed boot failure

The factory-rootfs init path contains:

if [ -f "/usr/prog/app_startup.sh" ]; then
    /usr/prog/app_startup.sh
fi

In the acquired partition 6, the bricked app_startup.sh was mode 600 and root:root. The device-local pre-change backup was mode 755 and root:root. The only content difference was the inserted loop-launcher line. This explains the frozen logo, absent network/touch, and ineffective Linux-path USB recovery for that incident.

The exact file sizes and SHA-256 values are preserved in the local source evidence at docs\c5p-deep-unbrick\EVIDENCE.md and the prepared repair files. This note owns the device-specific facts; other notes must link here.

Prepared repair status

A repaired partition 6 image was prepared offline, passed a non-modifying ext4 check, and differed from the source only in the intended startup file and filesystem metadata. It was not written to the printer in the recorded evidence.

Evidence classification

  • P1: K4/J29 enumeration, Stage 2, read-only acquisition, file modes, and temporary ADB access.
  • S1: GPT, partition mounts, rootfs init, firmware structure, and ELF properties.
  • C1: FCC identification and community feature claims.
  • I1: A clean A/B target architecture may be possible, but bootloader slot behavior is not yet demonstrated.
